| Electrocoil is designed to provide an intruder detection signal and if required can also provide a high voltage shock |
|
|
|
- Effective
- False alarm minimised
|
|
Specifications – Standard Coil Sizes
|
|
|
|
|
| Coil Type |
450E
|
730E
|
980E
|
|
|
|
|
| Diameter (when packed) |
450 mm
|
730 mm
|
980 mm
|
|
|
|
|
| Stretch Distance (approx) |
8 m
|
10 m
|
10 m
|
|
|
|
|
| Inner Coil Diameter (approx) |
250 mm
|
350 mm
|
500 mm
|
|
|
|
|
| Outer Coil
Incorporate a coil of barbed tape manufactured based in accordance with BT 2396 generally is NATO codes 5660-99-285-3957 or 5660-99-371-1515.
Inner Coil
3 mm diameter smooth galvanised wire
Insulators
- Modulated Poly-Vinyl Chloride compound (i.e. tough moulded compound. U.V. stabilised,
- Fire resistant,
- Resists 16000 Volts wet condition and 25000 Volts dry condition
Energiser
Electrification distance: 1000 – 2000m includes :
- 220V / 12 V transformer
- Battery – 48 hour reservoir
- Battery charger
Can be operated with 220 Volt supply or solar cells.
A standard car battery will provide approximately 10 days supply. |
|

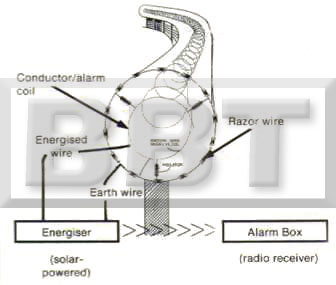

Schematic Diagram of Electrocoil
|
|
|
|
Conductor/alarm coil
- As intruder moves onto the outer coil (earth) they touch the inner coil (live) which activates an alarm (or if the intruder earths the inner live coil he sets-off the alarm)
- Optional Repulse ShockIn addition to the alarm detection system, a high voltage (5-7000 Volt) current can be fed into the system which will give an intruder a non-lethal repulse shock (this is an optional feature of the energiser)
Energised wire
This “live return” cable forms a circuit which is used to detect cutting of the barrier, it is fixed to the end of the inner live wire and is considered optional as the act of cutting is also likely to cause a short circuit which will activate the alarm
Razor wire
The outer coil which is made of barbed tape concertina/razor wire provides a fierce physical deterrent (this also prevents access to the live inner coil by innocent people)
Energiser
It is connected to a 220 Volt / 12 Volt charger transformer which supplies the power. It also includes a 2-day battery |
